Window Series Products/Skyline
Features :
• The frame fan adopts the combination of angle and 45 degree seamless weldingprocess
• Motor hidden design, hardware components not exposed, good aesthetics• Side bending chain motor, with an opening angle of about 35 degrees
• Motor single chain 40KG and double chain 80KG are optional • Suitable for sunrooms, lighting wells, and concrete roofs
Details :

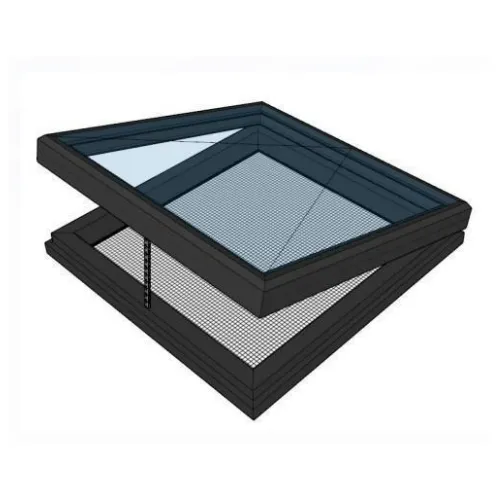

- Upward-opening sunroof (large slope)
- Main profile wall thickness：1.4mm
- profile designation：6063-T5
- Opening method: Flip up to open
- Hardware Configuration: O-tech Side Bend Chain Motor (Standard Features: Rain Sensor, Remote Control, Control Panel)
- Open size range：W:600-2000 ,H:550-1200
- Glass Specification：5+0.76+5+12A+5
- Open size range: Open control within 2.5 ㎡, Optional screen window, optional light strip
Conventional Color
Fluorocarbon starry sky gray, fluorocarbon coffee light, fluorocarbon flawless black
Customized color: customized according to the color palette
Our Customization is Worthy of Your Trust and Choice
Our team offers expert guidance or customizations (OEM & ODM) to suit your product needs. Prior to commitment, provide written confirmation for the key parameters: temperature range, working stroke, and maximum force. We employ advanced modelling to ensure project confidence. Rest assured, our product development maintains strict confidentiality, safeguarding your project throughout.
