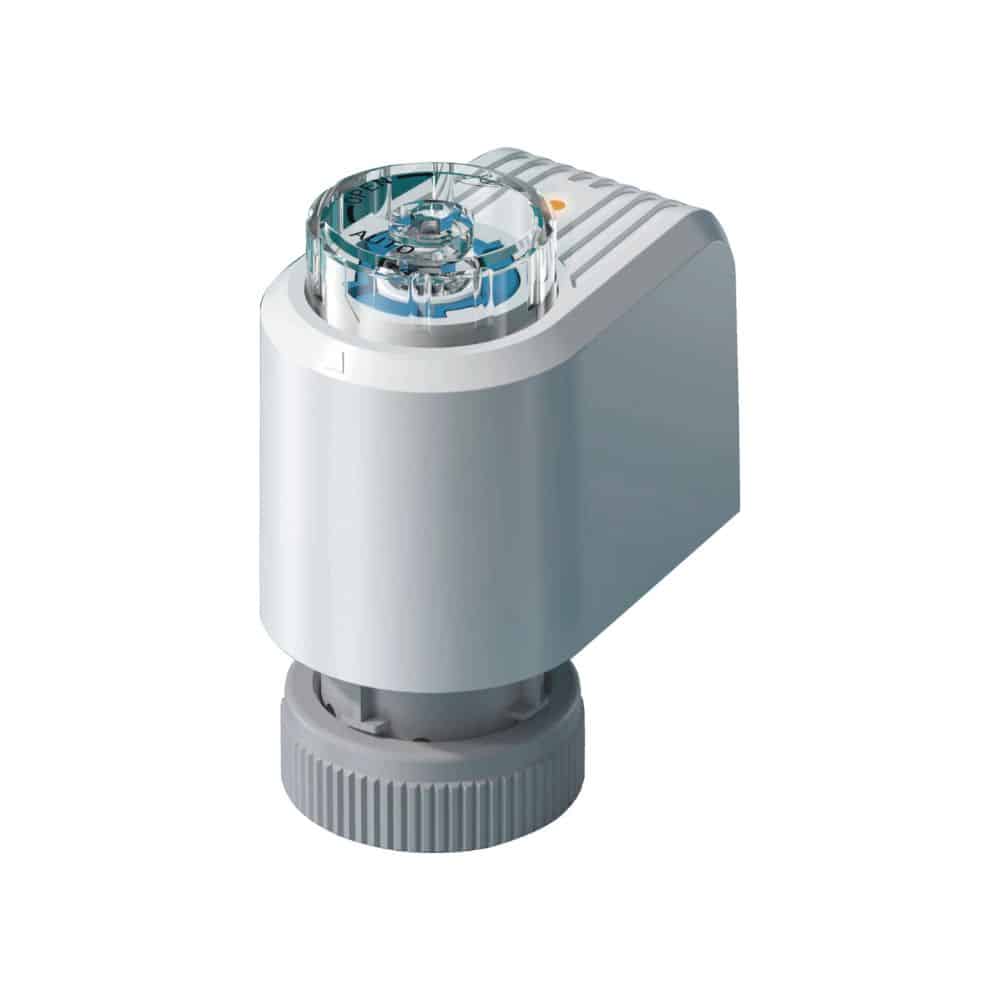

Thermal Actuator 920080PL
Voltage: 24V DC 50/60Hz
Control direction: Normally Closed
Power consumption: 2W
Control direction: Normally Closed
Power consumption: 2W
Cable: 3×0.5mm2-800mm
Control voltage: 0-10V DC
Wire connection method: plug-in
Maximum starting current: Max. 300 mA
Movement type: Linear
Working temperature: 0℃ – 60℃
Force: 120±10N
Stroke: ≥4mm
Protection grade: IP54
Standard: EN 60730
Adapter: M30x1.5mm
Response time: 3-5 minutes
Housing material: PA66+30%GF
Force: 120±10N
Stroke: ≥4mm
Protection grade: IP54
Standard: EN 60730
Adapter: M30x1.5mm
Response time: 3-5 minutes
Housing material: PA66+30%GF
Control mode: Energy saving & comfort mode, heating mode, off
Our Customization is Worthy of Your Trust and Choice
Our team offers expert guidance or customizations (OEM & ODM) to suit your product needs. Prior to commitment, provide written confirmation for the key parameters: temperature range, working stroke, and maximum force. We employ advanced modelling to ensure project confidence. Rest assured, our product development maintains strict confidentiality, safeguarding your project throughout.
